Architecture

How TraceCtrl’s components fit together

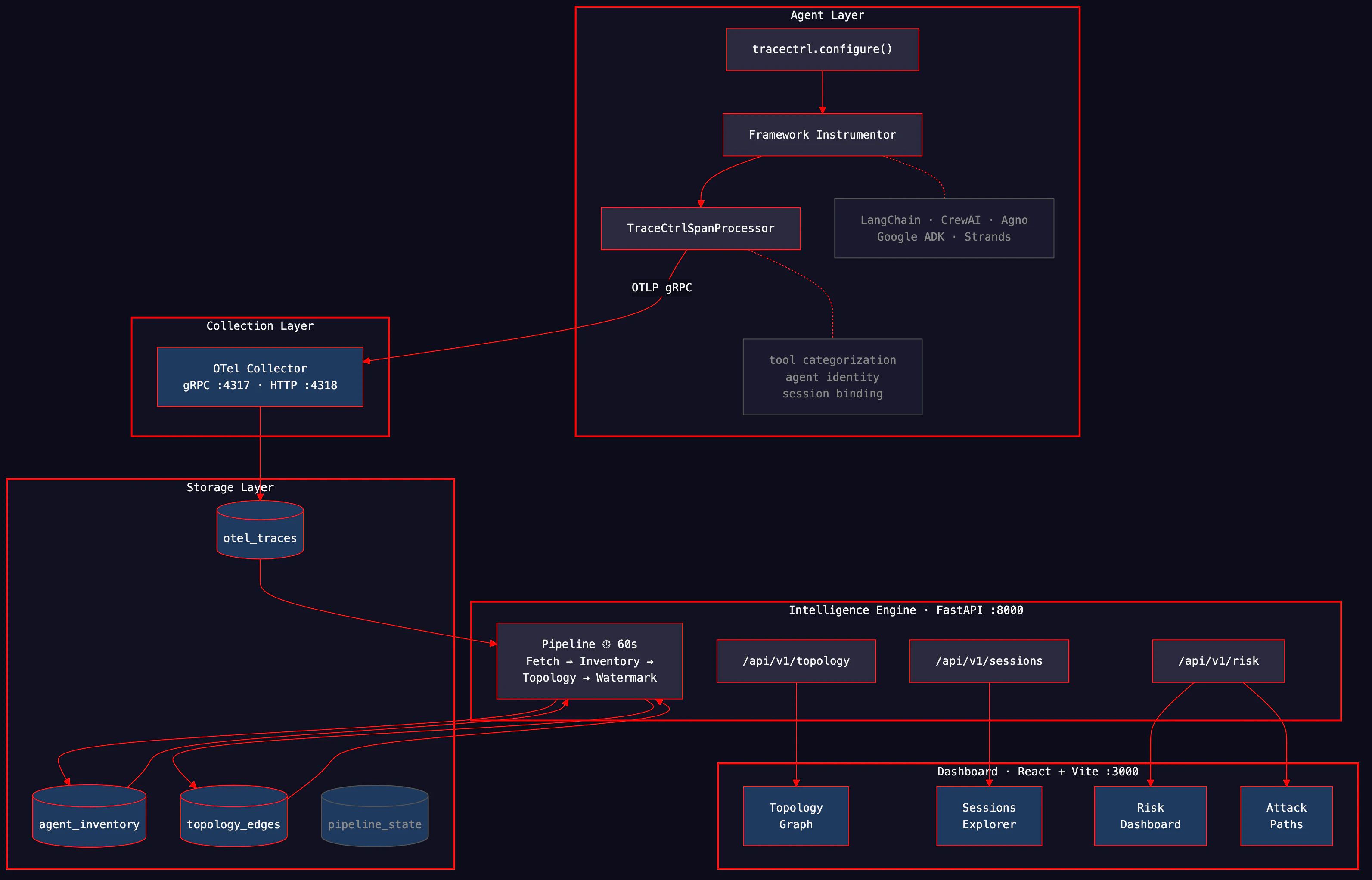

System Overview

TraceCtrl has four components: the Python SDK (in your agent), the OTel Collector (span routing), the Intelligence Engine (processing + API), and the Dashboard (visualization).

Component Details

Python SDK

The SDK wraps OpenInference framework instrumentors with a TraceCtrlSpanProcessor that enriches every span with security attributes. It uses OpenTelemetry as the transport — no custom protocols, no vendor lock-in.

Key modules:

• tracectrl.config — configure() sets up the TracerProvider with OTLP gRPC exporter
• tracectrl.processor — TraceCtrlSpanProcessor adds agent identity, tool categories, session IDs
• tracectrl.inference — Classifies tools into 8 risk categories
• tracectrl.session — Session ID management via Python contextvars
• tracectrl.context — W3C traceparent propagation for cross-service agents

OTel Collector

A standard OpenTelemetry Collector configured to receive OTLP spans on gRPC (:4317) and HTTP (:4318), then export them to ClickHouse via the clickhouseexporter. Configuration lives in config/otel-collector.yaml.

Intelligence Engine

A FastAPI application that:

1. Runs a pipeline every 60 seconds — reads new spans from otel_traces, upserts the agent inventory, builds topology edges, and advances the watermark
2. Serves a REST API — topology graph, agent details, session list, span trees
3. Uses ClickHouse ReplacingMergeTree tables with cumulative state (observation counts, call counts, confidence levels)

Dashboard

A React + Vite + TypeScript SPA with:

• Topology — Cytoscape.js graph with dagre layout showing agents, tools, and their connections
• Sessions — Trace explorer with span trees and waterfall timelines
• Risk Dashboard — CISO risk view (Sprint 2)
• Attack Paths — Ranked exploitation chains (Sprint 2)

Data Pipeline

1. Fetch

   Read new spans from otel_traces since the last watermark timestamp.

2. Inventory

   Upsert agent records with cumulative observation counts and tool lists.

3. Topology

   Upsert agent-to-agent and agent-to-tool edges with confidence scoring.

4. Watermark

   Advance the watermark timestamp. Only advances on success — no data is ever skipped.

ClickHouse Tables

Table	Engine	Purpose
otel_traces	Auto-created by Collector	Raw OpenTelemetry spans
agent_inventory	ReplacingMergeTree	Deduplicated agent records
topology_agent_edges	ReplacingMergeTree	Agent-to-agent connections
topology_tool_edges	ReplacingMergeTree	Agent-to-tool connections
pipeline_state	ReplacingMergeTree	Watermark tracking

ReplacingMergeTree deduplicates rows during background merges. Always query with FINAL for correct results: SELECT * FROM agent_inventory FINAL.
